Transdermal drug delivery system of lidocaine hydrochloride based on dissolving gelatin/sodium carboxymethylcellulose microneedles

Abstract

In this study, it was aimed to introduce a transdermal drug delivery system with dissolving microneedles (DMNs) based on gelatin (GEL) and sodium carboxymethyl cellulose (NaCMC) for lidocaine hydrochloride (LidoHCl) delivery. Different ratios of GEL and NaCMC were mixed, loaded with an active agent of LidoHCl, and treated with glutaraldehyde (GTA) as a crosslinker agent. Prepared hydrogels were cast into a silicon mold. Hereby, microneedles (MNs) with 500 µm height, 35° needle angle, 40-µm tip radius, and 960-µm tip-to-tip distance were fabricated. Samples containing LidoHCl 40%, GEL/NaCMC 5:1 (wt/wt), and polymer/GTA ratio 3.1 (wt/wt) showed the highest drug release ability (t < 10 min) with proper mechanical properties in comparison with other samples. Due to the drug release in a short time (fewer than 10 min), this drug delivery system can be used for rapid local anesthesia for pain relief as well as before minor skin surgeries.

Graphical Abstract

Introduction

The skin is the largest organ of the body that provides a convenient and accessible route for drug delivery (Han and Das 2015; Cevc and Chopra 2016). Transdermal drug delivery (TDD) demonstrates an attractive approach to systemic drug delivery and avoids pre-systematic metabolism (destruction in the gastrointestinal tract or by the liver), the possibility of controlled drug delivery for a long time, and an alternative solution for oral dosing in patients with anesthesia or nausea and direct access to the site or disease, for example, treatment of skin disorders such as fungal infections and psoriasis (Prausnitz MR and Langer R 2008; Jeong et al. 2021; Wang et al. 2021). Most importantly, since TDD is a noninvasive and almost painless administration method, it increases the acceptance of patients, especially children and the elderly (Inamuddin and Mohammad 2018; Zhu et al. 2001; Donnelly et al. 2012). However, there are several challenges to TDDs that have not yet fully achieved their potential as an alternative to hypodermic injections, mucosal administration, and oral delivery. First, the physicochemical properties of the skin create a barrier to drug delivery through the outermost layer of the skin epidermis called the stratum corneum (SC) (Jeong et al. 2021; Wang et al. 2021; Pastore et al. 2015). Second, only a limited number of drugs can be administered via TDDs (molecular weight less than 500 Da) (Bos and Meinardi 2000).

To overcome these limitations, an innovative microneedle (MN) approach aimed at developing safe and efficient means for delivering medications through the skin has attracted the attention of many scientists (Hao Y et al. 2017; Kochhar et al. 2016; Migdadi and Donnelly 2019; Ahmad et al. 2020; Bonfante et al. 2020; Liu et al. 2022; Dugam et al. 2021). DMNs penetrate the SC and dissolve in the interstitial tissue and release encapsulated drugs into the epidermal layer (He X et al. 2019; Bonfante et al. 2020; Ma and Wu 2017; Yang et al. 2020; Lee et al. 2020; Zhang et al. 2021; Xing et al. 2021). The evolution of these MNs has led to more innovative designs (Vecchione R. et al. 2014: Dugam et al. 2021; Vora et al. 2022; Roy et al. 2022; Shah and Choudhury 2017; Zhang et al. 2021). Hydrogel-forming MN or swellable MN can be used as a method developed from the “poke and release” approach for drug delivery (Liu et al. 2022; Li et al. 2018; Dash et al. 2013) due to their high water content, biodegradability, biocompatibility, and renewability (Bao et al. 2019; Ge et al. 2018). Among the local anesthetics, lidocaine is a frequently used medication for the treatment of chronic pain and acute (Zempsky WT 2008; Kochhar et al. 2013; Gomes et al. 2016; Houck and Sethna 2005; Martell et al. 2017); lidocaine must get through a skin barrier to reach the nerve system in order to provide a local anesthetic (Gudin and Nalamachu 2020). Injectable Lido solution in either basic (lidocaine) or acidic forms (LidoHCl) has the mechanism of action antagonism of nerve signals in cells by inhibiting the influx of sodium ions through the sodium channels of the biological cell membrane, which response to temporary pain blockage on the skin surface (Rasool et al. 2020; Cepeda et al. 2015; Abdellatif and Ibrahim 2020). However, using syringes can cause anxiety, pain, and infection that lead to poor patient compliance and require a prescription by experienced medical personnel (Shin et al. 2017; Donnelly et al. 2010). Topical anesthetic gels and creams provide a simple, painless way to apply anesthesia. Nevertheless, these procedures lead to passive diffusion in the outer layer of the skin, resulting in slow-onset times of 30 to 60 min (Lee et al. 2020). This delayed onset is a major obstacle to the widespread use of local anesthetics for intravenous access methods (Donnelly et al. 2010; Spierings et al. 2008). To overcome this limitation, the MN has been studied to deliver drugs through the transdermal route for a fast onset time.

The use of biopolymers like polysaccharides and proteins for the crosslinking structure with the functional role of trapping drugs and with the goal of optimizing skin permeation pharmacokinetics has attracted the attention of many investigators (Santos LF et al. 2018; Edgar et al. 2021; Jeong et al. 2021; Mustafa Kamal et al. 2020). Gelatin (GEL) and sodium carboxymethyl cellulose (NaCMC) are biopolymers with bioavailability properties that can deliver therapeutic drugs transdermally as well as in combination with the composition of DNM (Nayak et al. 2013). GEL is a biodegradable protein that is naturally amphoteric due to the presence of both acidic and basic functional groups in the structure (Xing et al. 2014; Hajzamani et al. 2020). The low thermal and mechanical stability of GEL hydrogels has constrained their use in a variety of applications. However, by mixing GEL with other natural polymers such as NaCMC, and also using crosslinking agents such as glutaraldehyde (GTA), its thermal and mechanical stability can be improved (Khan and Anwar 2021; Liu et al. 2022; Favatela et al. 2021). GEL/NaCMC hydrogels can be modified according to the ratio of polymers and the amount of GTA for drug delivery under interstitial fluid conditions (pH = 5.5 and T = 37 °C). GEL/NaCMC hydrogel synthesis representation is given in Fig. 1. As the protein and polysaccharides utilized in this research include abundant amino and carboxyl groups, they generate a pH-sensitive hydrogel network. As per the literature, the interstitial fluid of the skin has a mildly acidic environment (Wagner et al. 2003; Proksch 2018; Ali and Yosipovitch 2013).

Fig. 1
figure 1

The GEL/NaCMC hydrogel synthesis of schematic

The literature review showed that there are not enough studies about dissolving microneedles for anesthetics drug delivery systems. Here, a DMN transdermal drug delivery system is proposed for the delivery of an anesthetic drug. GEL/NaCMC hydrogels in different mixing ratios were prepared and loaded with LidoHCl and crosslinked with glutaraldehyde. The structural characteristics of the DMN were determined by FTIR and XRD to confirm the lack of chemical interactions between the drug and comprehend the polymers and the formation of crosslinking structure between GEL/NaCMC. The effect of varying concentrations of polymers, crosslinker, and amount of drug on swelling, solubility, gel fraction, drug release behavior, and mechanical strength was also evaluated. So, considering the highest swelling in skin conditions, we believed that the development of GEL/NaCMC hydrogels with MN morphology via a manner of “poke and release” is a promising approach for TDDs, and this strategy can be used for pain relief as well as before minor skin surgery, such as the removal of moles, warts, and verrucas.

Materials and methods

Materials

GEL type A (300 bloom), NaCMC (Mw 250 kDa, DS: 0.9), GTA solution (25% in water), and acetic acid were supplied from Sigma-Aldrich. LidoHCl (Mw 288.81 g mol−1) was provided by Darou Pakhsh Pharma Chem. Co.. All chemicals were used without further purification.

Methods

Preparation of hydrogels

  • Solution A: The clear gelatin solution was obtained by dispersing the required amount of GEL at 40 °C (Bello et al. 2020; Ivone et al. 2021) while stirring, and then, the required amount of LidoHCl was loaded into it (Table 1), and its pH was adjusted to 3.8–4.2 by adding acetic acid (0.1 M).

  • Solution B: NaCMC was separately dispersed in distilled water and gently heated (~ 50 °C) to accelerate dissolution. Subsequently, solution B was added to solution A and stirred until a viscous solution was obtained. The total concentration of polymers in the solution was constant at 15 (w/v%) for all prepared samples. After cooling to 25 °C, the crosslinking agent (GTA) was added slowly under continuous stirring (400 rpm speed for 20 min).

Table 1 Formulation MNs

Molding

Microneedle molds were made by a two-step “print and fill” method, using 3D printing (Krieger et al. 2019; Nejad et al. 2018). First, the positive template was designed using 3Design® software. Then, by examining the effects of MN mold geometry, the parameters of needle height (500 ± 10 µm), needle angle (35°), tip radius (40 ± 10 µm), and tip-to-tip distance (960 ± 10 µm) were optimized. The optimized design was printed using a 3D printer (DLPFootnote 1). Afterward, it was washed with hot water and dried. The molding silicone resin with hardener (in a 10:1 ratio) was poured into the positive mold, and the procedure was completed by placing it in a vacuum oven overnight. The last negative silicone mold was used to create MN from hydrogels (Fig. 2).

Fig. 2
figure 2

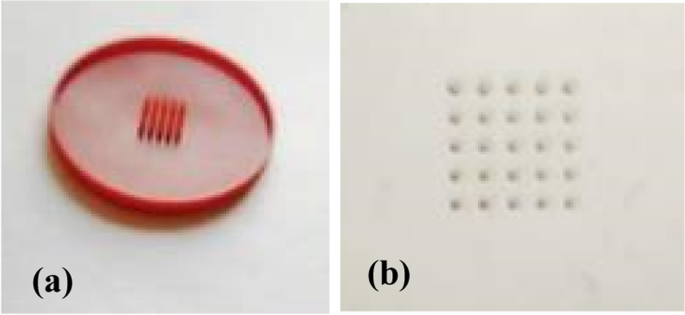

MN mold. a Positive template fabricated by the 3D printer. b Obtained negative silicone mol

Scanning electron microscopy studies

The surface morphology of the DMN arrays was investigated using SEM (Vegall, Tescan). DMN samples were mounted on an aluminum mount and sputtered with a thin layer of gold. The samples were then placed into the SEM vacuum chamber and observed at various angles using an accelerating voltage of 15 kV. ImageJ software was used to measure the dimensions.

FT-IR spectroscopic analysis

FTIR spectral data were taken with the Infrared Bruker Tenso II instrument (at a resolution of 4 cm−1 and averaged 16 scans) to confirm the structure and also to find the chemical stability of the drug in the hydrogels. Gelatin, NaCMC, and LidoHCl were each separately finely grounded with KBr and thus kept ready for taking spectra. Also, for the GEL/NaCMC DMN and drug-loaded DMN, ATR spectroscopy was performed with an EQUINOX device from Bruker, Germany.

X-ray diffraction (XRD) analysis

X-ray pattern of LidoHCL, drug-loaded, and unloaded DMN was analyzed using Inel X-ray Diffractometer (EQUINOX 3000). This analysis was run at a current of 30 mA and voltage of 40 kV with Cu Ka radiation.

Swelling, solubility, and gel fraction

The swelling behavior of hydrogels in different pH values of 1.2, 5.5, 6.5, and 7.5 of USP phosphate buffers at 37 ± 0.1 °C was monitored (Khan and Anwar 2021). Typically, a certain amount (40 to 50 mg) of DMNs, dried to constant weight, was placed in a pouch made of nylon cloth, weighted, and left to swell by immersing into a beaker containing the swelling media. At regular intervals, the pouch was removed from the solvent, after blotting with tissue paper to remove excess solvent on the surface, and was weighed using an electronic microbalance (Sartorius 313, accuracy of ± 0.01 mg) and then returned to the medium. The percentage of swelling determined at the time (t) was calculated using Eq. (1) (Saraswathy et al. 2020; Khan and Anwar 2021):

$$WR\left( \% \right) \, = \frac{Ws - Wd}{{Ws}} \times 100$$
(1)

where Ws and Wd are the weights of swollen hydrogels at t, and dried hydrogels, respectively. The experiments were repeated three times and reported as a mean value.

The gel fraction was determined by weighing the unwashed DMNs before drying them in an oven at 40 °C (Mi). To remove non-crosslinked polymer, the samples were immersed in deionized water as a solvent for 24 h. After that, DMNs were dried in a vacuum oven at 40 °C until a constant weight was obtained (Mf). The percentage of gel fraction was calculated using Eq. (2) (Favatela et al. 2021):

$$GF(\% ) = (\frac{Mf}{{Mi}}) \times 100$$
(2)

Solubility analysis was performed to determine the quantity of partial dissolution or the percentage of mass lost. The DMNs were weighed before (Mi) and after (Mf) being placed in 100-ml buffer (PBS pH 5.5) at 37 °C for 48 h, and then, weight loss was inspected. The samples solubility was calculated based on Eq. (3) (Esteghlal et al. 2018):

$$\mathrm{Solubility}\;(\%)=(M_i-M_f/M_i)\times100$$
(3)

Release study of LidoHCl in vitro

The in vitro drug release from LidoHCl-DMN was studied in PBS buffer (pH = 5.5) by dissolution analysis. For this purpose, the paddle-over disk method (Fig. 3) was used to examine the transdermal delivery systems (USP38/NF33 2015; Jesús et al. 2022; Price et al. 2020).

Fig. 3
figure 3

Paddle over disk for dissolution test

First, 500 ml of the buffer solution was poured into the vessel, and then, the DMN assembled on a disk was placed at the end of the vessel and stirred at 50 rpm. At predetermined time intervals, 2 ml of the solution was taken and replaced with a fresh one, and all samples were tested in triplicate. Sink conditions were maintained throughout the experiment, with the concentration of the LidoHCl in the release medium being less than 10% of the saturated solubility and constant temperature of 37 ± 0.5 °C. The concentration of LidoHCL in the release media was determined by UV–Vis spectrophotometer (PerkinElmer, LAMBDA 365, USA) at λmax of 263 nm. To determine the reproducibility and the accuracy of the UV test, the RSD percentage was calculated, and it was determined to be less than 5%. Also, UV spectroscopy was performed for each of the ingredients of the formulation. Solution samples were tested separately, and PBS buffer (pH = 5.5) was the reference.

Calibration curve of LidoHCl

A calibration curve is required to determine the rate of drug release from the samples (Pandit et al. 2016; Kumar et al. 2012) Specified concentrations of LidoHCL (5, 10, 15, 20, 30, and 40 µg/ml) in the buffer (pH = 5.5) were scanned in the range of 200–400 nm by using a UV–Vis spectrophotometer, and a prominent peak was observed at 263 ± 1 (nm). The absorbance values were recorded at 263 nm with the corresponding concentrations, the calibration curve was plotted, and the line equation was obtained with R2 = 0.9953. Using Eq. 4, the drug release rate was obtained by knowing its absorbance.

$$\mathrm{Absorbance}= 0.0181\,{\mathrm{ Concentration}}\,({\mathrm{\mu g}}/{\mathrm{ml}}) + 0.0258$$
(4)

Mechanical properties

The evaluation of the mechanical strength of the LidoHCl-DMN was measured using a SANTAM-STM20 instrument with a 6 N load cell as it allowed for sensitive measurements within an accuracy level of 0.4%. LidoHCl-DMNs containing 5 × 5 needle arrays were fixed on a platform surface under the vertically moving mechanical sensor using a double-sided adhesive tape. Then, the probe moved downward vertically at a speed of 0.5 mm s−1 as shown in Fig. 4. Subsequently, the varying force and sensor displacement were recorded during the test to obtain the axial force that causes the fracture of DMN.

Fig. 4
figure 4

Schematic of the mechanical test machine

Antibacterial analysis

The antimicrobial activities of the prepared MN were investigated using the diffusion method. One-hundred milliliters of gram-negative bacterial Escherichia coli and Staphylococcus aureus with a concentration of 0.5 × 107 was cultured, and it is used to test antibacterial activity by agar diffusion assay. The bacterial plates were placed in an incubator at 37 °C for 24 h. After 24 h, the plate was checked from the zone of inhibition by calculating the diameter of the inhibition section, and a picture was taken (Xue et al. 2013).

Results

Fabrication of MN

The polymer mixture was cast into the negative mold by centrifuged force. The negative silicon mold was first fitted at the end of the falcon tube, and then, the hydrogels were added and centrifuged for 5 min at 5000 rpm. The centrifugal force caused the hydrogels to enter the microcavities of the MN mold (Fig. 5e). The molds containing the hydrogel were then placed in a vacuum oven to dry for 6 h. Finally, the DMN hydrogels were separated from the mold and washed three times with distilled water (40 °C) to remove unreacted materials. The dried DMN hydrogels were placed in a vacuum-equipped desiccator until further usage.

Fig. 5
figure 5

LidoHCl DMNs. a Hydrogel-filled silicon mold. b and c Synthesized samples. d SEM at 280 × , e 500 × , f 80 × magnifications. g 0, h 5, and i 10 min after exposure to pH 5.5. j Before and k after the force application

Macrostructure

Figure 5a, b, and c indicated the surface morphology of DMN arrays. The DMN arrays in this study had a surface area of 25 (mm2) and contained 25 MN equally distributed in a 5 × 5 arrangement (Fig. 5e, f). It was observed that SEM micrographs of the DMN arrays sample contain slightly rough surfaces. The structure of individual needles was evident at increased magnification (Fig. 5a).

Structure investigation

The ATR-FTIR analysis confirmed the successful crosslinking of GEL and NaCMC chains. The spectra of GEL, NaCMC, GEL/ NaCMC DMN, LidoHCl, and LidoHCl-loaded GEL/NaCMC DMN are presented in Fig. 6. As shown, the stretching vibrations of the O–H and N–H in the GEL/NaCMC hydrogel spectrum shifted gently to lower wavelengths. In addition, the amide I band shifted from 1654 to 1656 cm−1. These indicated that the anionic groups in NaCMC with the cationic ones in GEL were coupled. On the other hand, the new bands in the range of 1150 to 1070 are attributed to the C–O–C stretching vibrations, which confirmed the crosslinking of the polymers.

Fig. 6
figure 6

FTIR spectra of the LidoHCL, NaCMC, GEL/NaCMC DMN, and drug-loaded DMN

Figure 7 shows the diffractograms of LidoHCl, Gel/NaCMC, and drug-loaded samples. As illustrated, LidoHCl has shown numerous characteristic sharp peaks due to its highly crystalline nature. The XRD pattern of blank GEL/NaCMC hydrogel (MNB sample) exhibits a broad peak, which represented the amorphous state. The diffractogram achieved by the drug-loaded GEL/NaCMC DMN (MN3, MN6, MN7) indicated the same amorphous state at 2 = θ 21°. The appearance of peaks following LidoHCl loading at 14° and 26° indicates an increase in the crystallinity of the hydrogel samples.

Fig. 7
figure 7

XRD pattern of LidoHCl, MNB, MN3, MN6, and MN7 samples

Effects of pH, the ratio of polymers, and polymer/GTA ratio on swelling

The swelling behavior of GEL/NaCMC hydrogels is influenced by the pH of the immersed media, the ratio of the two polymers, and the amount of the crosslinking agent. Table 2 demonstrates the extent of the swelling of DMNs. The highest value of swelling was observed in acidic pH. Also, by raising the gelatin content in the microneedle composition, an increment in the water absorption of the microneedle was observed. The amount of glutaraldehyde had an inverse relation with swelling. In other words, increasing the crosslinker concentration forms a strong structure that declines the swelling.

Table 2 The results of swelling, GF, solubility, and mechanical strength tests

Gel fraction and solubility study

The effects of the LidoHCl-DMN contents on the gel fraction are presented in Table 2. To scrutinize the effect of the amount of crosslink agent on GF%, three samples (MN3, MN4, and MN5) were studied with different amounts of polymer/GTA ratio (3.1, 2.5, and 1.5), while the ratio of polymers and the amount of drug are constant. These results show that increasing the amount of crosslink agent leads to an increase in the percentage of GF. To elaborate the effect of polymers ratio on GF of DMN, three samples (MN1, MN2, and MN3) were prepared with varying rates of GEL: NaCMC (3:1, 4:1, and 5:1) and keeping the amount of GTA and LidoHCl constant. This is because increasing the concentration of GTA leads to an increase in active sites for the crosslinking reaction. Thus, the crosslinking density between GEL and NaCMC increases, which leads to an increase in the mechanical strength of the hydrogel and a higher percentage of GF.

In vitro drug release

In vitro release studies were performed to understand drug release from LidoHCl-DMNs in the conditions of skin pH. The selectivity results revealed that in the λmax of LidoHCl, each of the ingredients of the formulation had no significant absorption. As shown in Fig. 5g, h, and i, the tips of the needles swell after 5 min, and a significant amount of needles dissolve after 10 min. Figure 8 illustrates the effects of the ratio of the polymer, the amount of crosslinker, and the amount of medication on drug release at pH = 5.5.

Fig. 8
figure 8

Effect of a GTA, b polymer ratio, and c the amount of LidoHCl on in vitro release profile

Mechanical properties

An axial compression force was applied to the MN arrays to see whether they had adequate mechanical strength to penetrate the skin (Chen et al. 2021). As reported in the force/needle results of DMNs (Table 2), all MN arrays have the sufficient mechanical strength to penetrate the skin.

Antimicrobial activity

The prepared sample was applied to bacterial E.coli and S.aureus which results in antibacterial activity as shown in Fig. 9. MN7 proved to be antibacterial in nature. The average diameter of the zone of inhibition is 0.88 cm.

Fig. 9
figure 9

Antimicrobial activity of MN7

Discussion

Dissolving and hydrogel-forming MN with the “poke and release” approach are a novel method of TDDs in which drugs can be loaded and released when the MN dissolves after insertion (Liu et al. 2022), also reducing onset time and improving permeability (Ma and Wu 2017; Yang et al. 2020). In this study, a mixture of a polysaccharide (NaCMC) and a protein (GEL) was used to create a drug delivery carrier with microneedle morphology. The dimensions of the prepared microneedle were needle height 450 µm, tip radius 30 µm, and tip-to-tip distance 960 µm. Examining the different dimensional parameters of the microneedle, it was found that needles with an input height of 300 to 600 µm are not of sufficient quality for molding, and higher heights may cause pain in the patient (Krieger et al. 2019; Nejad et al. 2018).

The ATR-FTIR spectrum of samples clearly showed the absorption bands of the crosslinked mixture of polymers. In the spectrum of GEL, a sharp absorbance band was observed at 3420 cm−1 due to N–H stretching vibration. The medium peak at 1558 cm−1 belonged to the N–H bending vibration. The absorption bands appearing at 1654 and 1330 cm−1 indicated the type 1 amide band and the C–N band stretching vibrations, respectively, which are the most significant peaks for FTIR analysis of the gelatin structure (Khan and Anwar 2021; Buhus et al. 2009). The medium peak at 1239 cm−1 belonged to the type 3 amide, and the weak peak that appeared at 1525 cm−1 was assigned to the type 2 amide. The band appearing at 1440 cm−1 indicated aliphatic C–H bending vibrations, while aliphatic C–H stretching vibrations were observed at 2923 cm−1.

NaCMC showed a strong absorbance band at 3368 cm−1 was assigned to the O–H stretching vibration. The shoulder at 2918 cm−1 indicated aliphatic C–H stretching vibrations, while the strong peak at 1625 cm−1 and medium peak at 1425 cm−1 were due to the asymmetric and symmetric stretching of the carboxylate group. The intense peak of C–O stretching vibration for ethers was ascribed to the significant absorption peaks at 1000–1160 cm−1. These findings are in good accord with findings from previous investigations (Devi and Maji 2009).

The main absorption peaks of LidoHCl powder were observed at 3382, 3011, 1654, and 1470 cm−1. These bands were assigned as N–H stretching, C–H stretching, amide I (C = O), and amide II (C–N), respectively. FTIR spectra were also used to affirm the chemical stability of LidoHCL in samples. As observed in Fig. 6, the position of these bonds in drug-containing hydrogels almost remained unchanged, indicating there was no significant chemical interaction between the drug and the GEL/NaCMC hydrogels. It may be noted that in the case of drug-containing DMNs, the band observed at 1654 cm−1 overlapped with the GEL amide band, so XRD analysis was performed to confirm the stability of Lido in the hydrogel.

The intensity of XRD peaks was more noticeable for the MN7 sample than for the MN3 and MN6 samples, indicating a higher amount of drug. These results are consistent with the in vitro drug release data.

The study of swelling results showed that acidic media is due to the protonation of the free amino groups of GEL, which leads to electrostatic repulsions between them and thus expands the polymer network, whereas free carboxylic groups with hydroxyl groups of NaCMC may lead to a contraction of the network by intense hydrogen interactions or by intermolecular lactonization (Khan and Anwar 2021; Tataru et al. 2011). As the pH increases towards the basic medium, carboxylic groups of CMC become ionized, and GEL owns COO − groups, and the electrostatic repulsion between the carboxylate groups expands the polymer network. Due to the higher weight ratio of GEL in hydrogels, its effect on the degree of swelling was superior to NaCMC; hence, the maximum swelling was observed in acidic pHs (1.2, 5.5). Similar findings were presented by Khan and Taturo, and that the swelling ratio increases with increasing GEL content (Khan and Anwar 2021; Tataru et al. 2011). As shown in Table 2, hydrogels containing higher amounts of GEL (MN3) showed a higher degree of swelling than formulations containing lower amounts of gelatin (MN1, MN2). The swelling data of crosslinked hydrogels showed that by increasing the amount of GTA in the polymer hydrogel from 3.1 to 2.5 (wt/wt), the swelling decreases significantly from 553 to 263%. This was owing to the hydrogel’s mechanical strength increasing as a result of crosslinking and the formation of a more compact wall. Also, it is observed that MN5 has the highest GF with more crosslinker. Similar findings were reported that GF is directly related to crosslinking density (Khan and Anwar 2021). The GEL/NaCMC ratio of 5:1 showed a lower gel fraction compared to the ratio of 3:1 and 4:1. This is consistent with the results of Kreua-Ongarjnukool et al. (2020) who concluded that at constant concentrations of GTA, the gel fraction decreases with increasing polymer concentration, meaning that polymer chains have less crosslinking. Also, there was no significant difference between MN7 and MN6, indicating that the amount of drug did not affect GF. MN5 with the highest amount of GTA showed the lowest dissolution. Other authors have achieved similar results in examining the crosslinks of GEL/NaCMC (Khan and Anwar 2021; Favatela et al. 2021). They argued that increasing the crosslink density increases the mechanical strength of the hydrogel, which in turn leads to a decrease in the solubility of the hydrogel and reduces the water-uptake capacity of the polymer network. From data in Table 2, it is evident that the solubility at the 5:1 (MN3) ratio of polymers was higher than the ratio of 3:1 (MN1) which is in good agreement with the results of swelling. Similar findings were presented by Tataro et al. (Tataru et al. 2011) that as the amount of gelatin increased, more electrostatic repulsion was generated, leading to the relaxation of the polymer network. In MN3, MN6, and MN7 samples, the effect of drug amount on solubility was investigated. The MN7 sample showed the highest percentage of solubility. At a constant ratio of polymers and the amount of crosslinker, the solubility increases with the increasing amount of drug. This may be due to increased electrostatic repulsion between the polar groups of GEL and LidoHCl.

According to these results, during the first 10 min of release, a burst release effect was observed, and then, its value increased slightly for a while and was fixed after 60 min. Effects of various ratios of polymers in formulations MN1, MN2, and MN3 on release rates are presented in Fig. 8b. The MN3 formulation showed higher release rates than MN2. Similarly, MN2 revealed a higher release rate than MN1. Drug release experiments agreed with the study of swelling; as the rate of GEL versus NaCMC increases, the swelling increases, which in turn causes the higher release of drug (Fig. 8b). The effect of GTA content in MN3, MN4, and MN5 formulations on drug release rate is shown in Fig. 8a. The drug release rate was higher in the case of MN3 than in MN4 and MN5. This is because increasing the concentration of GTA leads to the formation of a rigid network structure. To elaborate the effect of drug loading on in vitro release profiles, three DMN samples (MN3, MN6, and MN7) were prepared with varying concentrations of LidoHCl (10, 20, and 40%) and kept the concentration polymers and GA constant. This indicates that an increase in drug concentration causes an increase in the release rates of drugs (Fig. 8c). Also, MN7 exhibited excellent antibacterial activity. According to previous studies, in the short contact time and low concentration of glutaraldehyde, the adverse effect on the skin does not remain (Ballantyne and Jordan 2001).

DMN array failure force is presented in Table 2. According to the literature, the insertion force required to overcome the barrier of the skin and deliver the drug efficiently into the skin is 0.058 (N needle−1) (Davis et al. 2004). For MN3, MN4, and MN5 DMNs, failure force increased with an increasing amount of GTA. This dependence is expected because increasing the crosslinker quantity leads to a rigid network structure. Comparing the mechanical strength of neat GEL and GEL/NaCMC DMN arrays showed that the addition of NaCMC to GEL greatly increases the mechanical properties. However, pure GEL DMN arrays exhibit compression forces at the end (low stress at fracture) of 0.051 (N), while mechanical strength for GEL/NaCMC DMN arrays reached 0.162 ± 0.01 N. Liu et al. (2022) deduced that the addition of cellulose nanofibrils to GEL could effectively improve the strength and toughness of the composite hydrogels. They found that when the composite hydrogel is under stress, the load can be transferred efficiently between the GEL matrix and cellulose nanofibrils. As shown in Table 2, the mechanical strength of MN1 with a polymer ratio of 3:1 has higher mechanical strength than MN3 and MN2. However, there was no significant difference in the mechanical strength of various amounts of the drug (MN3, MN6, and MN7). The shape of the synthesized DMN before and after applying the force is shown in Fig. 5j and k.

Conclusion

Dissolving microneedles loaded lidocaine based on natural polymers GEL and NaCMC were synthesized using GTA as the crosslinking agent. Prepared DMN can replace conventional anesthetic delivery methods such as injections and topical creams, due to their dissolution in skin pH, rapid onset time, and ability to cross the SC layer and deliver the sufficient drug to the skin. FTIR was used to corroborate the formation of crosslinked hydrogels between GEL and NaCMC. Also, XRD analysis indicated that the LidoHCl remained crystalline in the hydrogels. In addition, the shape of the DMN was shown on scanning electron microscopy micrographs. The synthesized DMN showed excellent swelling and solubility at skin pH. The results of the drug release study demonstrated that it was directly related to the ratio of polymers and the amount of drug and inversely to the amount of crosslinker. It was also observed that all samples presented a burst release in the first 10 min. Mechanical properties data revealed that all synthesized DMNs were able to cross the skin barrier. In this study, MN7 was considered the ideal DMN with the highest drug release rate and sufficient mechanical strength to penetrate the skin. It can be concluded that DMN loaded LidoHCl based on GEL/NaCMC hydrogels have the potential to be used as transdermal drug delivery devices. They can dissolve well in skin pH and are a good clinical tool in the field of local anesthesia and management of perioperative pain and chronic pain as well as before minor skin surgery, such as the removal of moles, warts, and verrucas.

Availability of data and materials

All data generated or analyzed during this study are included in this published article.

Notes

  1. Direct light processing
